Wipers

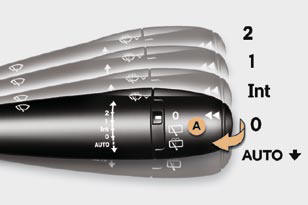

Stalk A: windscreen wipers
2. Fast wipe.
1. Normal wipe.
Int. Intermittent wipe.
0. Park.
AUTO Automatic wiping or single
wipe.
Wash-wipe: pull the control towards you.

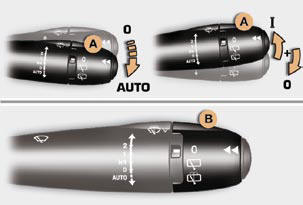

Switching on "AUTO" mode
Push the stalk downwards and release it.
Switching off "AUTO" mode
Push the stalk upwards and return it to position "0" .
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
