Electric child lock
Remote control system to prevent opening of the rear doors using their interior controls and use of the rear electric windows * .

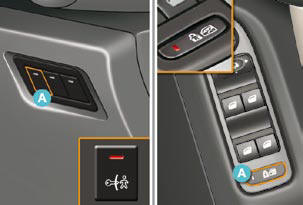

The control is located:
- either on the dashboard, driver’s
side, on versions without rear electric
windows,
- or on the driver’s door, with the electric
window controls, on versions fi tted
with rear electric windows.
Activation
Press button A
The indicator lamp on button A comes on, accompanied by a message on the multifunction screen.
This indicator lamp remains on until the child lock is deactivated.
Deactivation
Press button A again.
The indicator lamp on button A switches off, accompanied by a message on the multifunction screen.
This indicator lamp remains off until the child lock is activated.
Any other status of the indicator lamp indicates a malfunction of the electric child lock. Have it checked by a CITROËN dealer.
This system is independent and in no circumstances does it take the place of the central locking control.
Check the status of the child lock each time you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of a serious impact, the electric child lock is deactivated automatically to permit the exit of the rear passengers.
