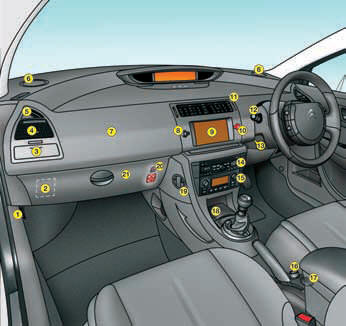

Dashboard
1. Bonnet release.
2. Fusebox cover.
3. Storage drawer (left and right).
4. Lateral air vent (left and right).
5. Side window demister vent (left and right).
6. Loudspeaker (Tweeter) (left and right).
7. Passenger’s airbag.
8. Control for central locking of doors and boot.
9. Multifunction display.
10. Hazard lamps control.
11. Scented air freshener.
12. Controls:
• Lighting.
• Direction indicators.
• Front fog lamps.
• Rear fog lamps.
13. Steering column adjustment lever.
14. Radio-CD or NaviDrive radio navigation.
15. Air conditioning or heating/ventilation.
16. Cigar lighter.
17. 12-volt accessory socket (150 W max). or USB socket.
18. Ashtray.
19. Carrier bag hook.
20. Key-operated switch:
• Passenger’s airbag activation/ deactivation.
21. Lower glovebox.
• Handbook pack storage.
See also:
Rear seats
Bench seat with fi xed one-piece cushion
and split backrest (left hand 2/3,
right hand 1/3) which can be folded individually
to adapt the load space in the
boot. ...
Jack socket
This connection box, consisting of a
JACK socket is located on the centre
console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ® type.
It reads ...
Rear lamps
(3-door model)
Identify the failed bulb.
Bulbs:
- Direction indicator: P21 W.
- Reversing lamp: P21 W.
- Stop lamps and sidelamps: P21/5.
Removal
To have access to the nut B, detach the boot ...
