Bonnet release

Citroen C4 / Citroen C4 Owner's Manual / Maintenance / Bonnet release

This should only be operated if the vehicle is stationary.

This should only be operated if the vehicle is stationary.

To release the bonnet, pull control A located under the dashboard to the right.

Move the lever A, located above the grille, to the right of the chevrons, then

Move the lever A, located above the grille, to the right of the chevrons, then lift.

Bonnet stay: detach the stay and pivot to introduce it into the notch

Bonnet stay: detach the stay and pivot to introduce it into the notch 1, then into the notch 2 (see the arrow reference).

Closing

Return the stay to its initial position, lower the bonnet and let it slam shut.

Make sure that the bonnet is securely locked. Avoid operating the bonnet when there are high winds.

Petrol engines

    See also:

    Warning lamps
    Left hand direction indicator See “Signalling”. Right hand direction indicator See “Signalling”. All the direction indicators flash simultaneously when the hazard warning lamps are switched on ...

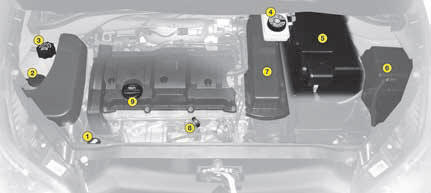

    Petrol engines
