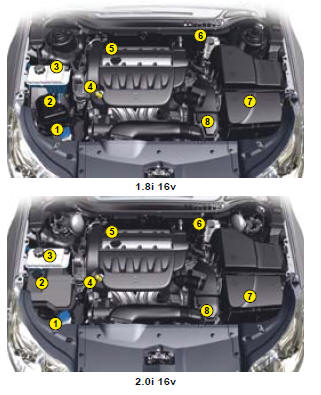

Petrol engines 1.8i 16v - 2.0i 16v
1. Screen wash and headlamp wash reservoir.
2. Power steering fluid or power steering and suspension fluid reservoir.
3. Engine coolant reservoir.
4. Engine oil gauge.
5. Engine oil topping-up.
6. Brake fluid reservoir.
7. Battery.
8. Air filter.
Vehicles with 2.0i 16v engines may be fitted with metallic suspension. In this case, the power steering oil reservoir is different.
